WF-AC8260

Buy at Amazon
Cooperation

WF-AC8260

Model: WF-AC8260

Major Chipset: Intel Wireless-AC 8260

Hardware Interface: PCIE X1 Interface

Compatible PCs Type: Standard and Slim Size PCs

Max Wi-Fi Speed: 2.4GHz 40MHz 300Mbps, 80MHz 5GHz 867Mbps

Wi-Fi Standard: IEEE 802.11AC Wi-Fi 5 with 2X2 MU-MIMO technology

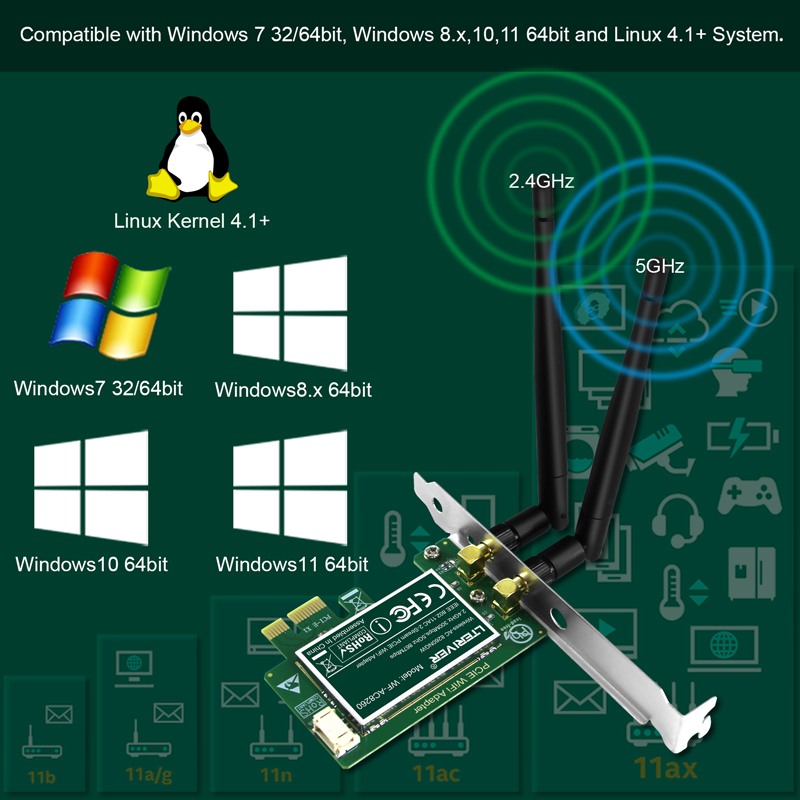

Compatible System: Windows 7 32/64bit and Windows 8.x,10, 11 64bit. Linux kernel 4.1+


LTERIVER Wireless-AC Dual Band 1200Mbps PCIE Wi-Fi Adapter for Windows 7 (32/64bit) and Windows 8.x, 10, 11 64bit Desktop PCs, 2.4GHz 300Mbps and 5GHz 867Mbps PCIE Wi-Fi Card (WF-AC8260)

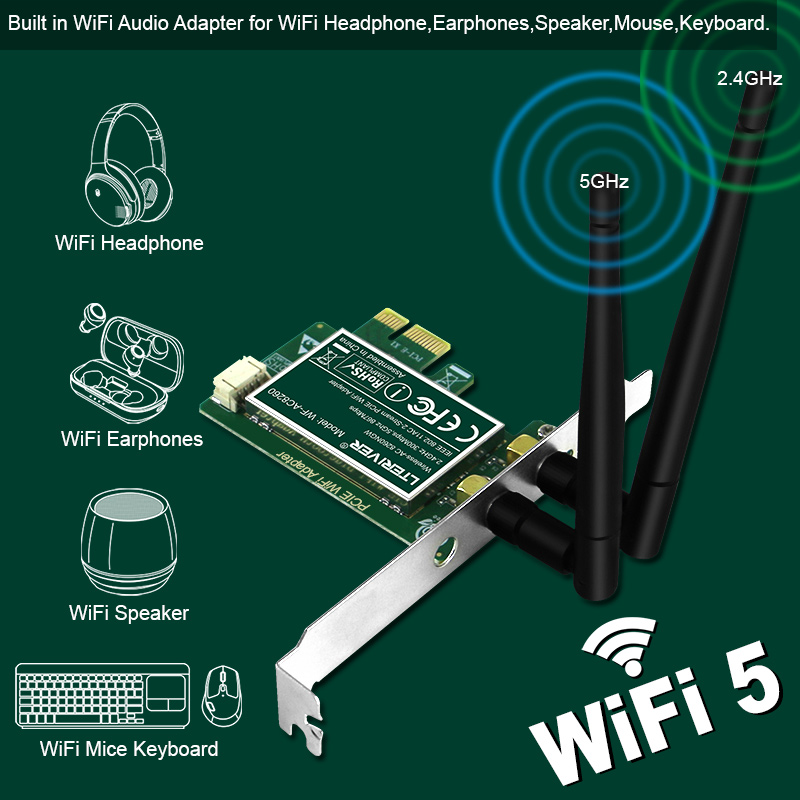

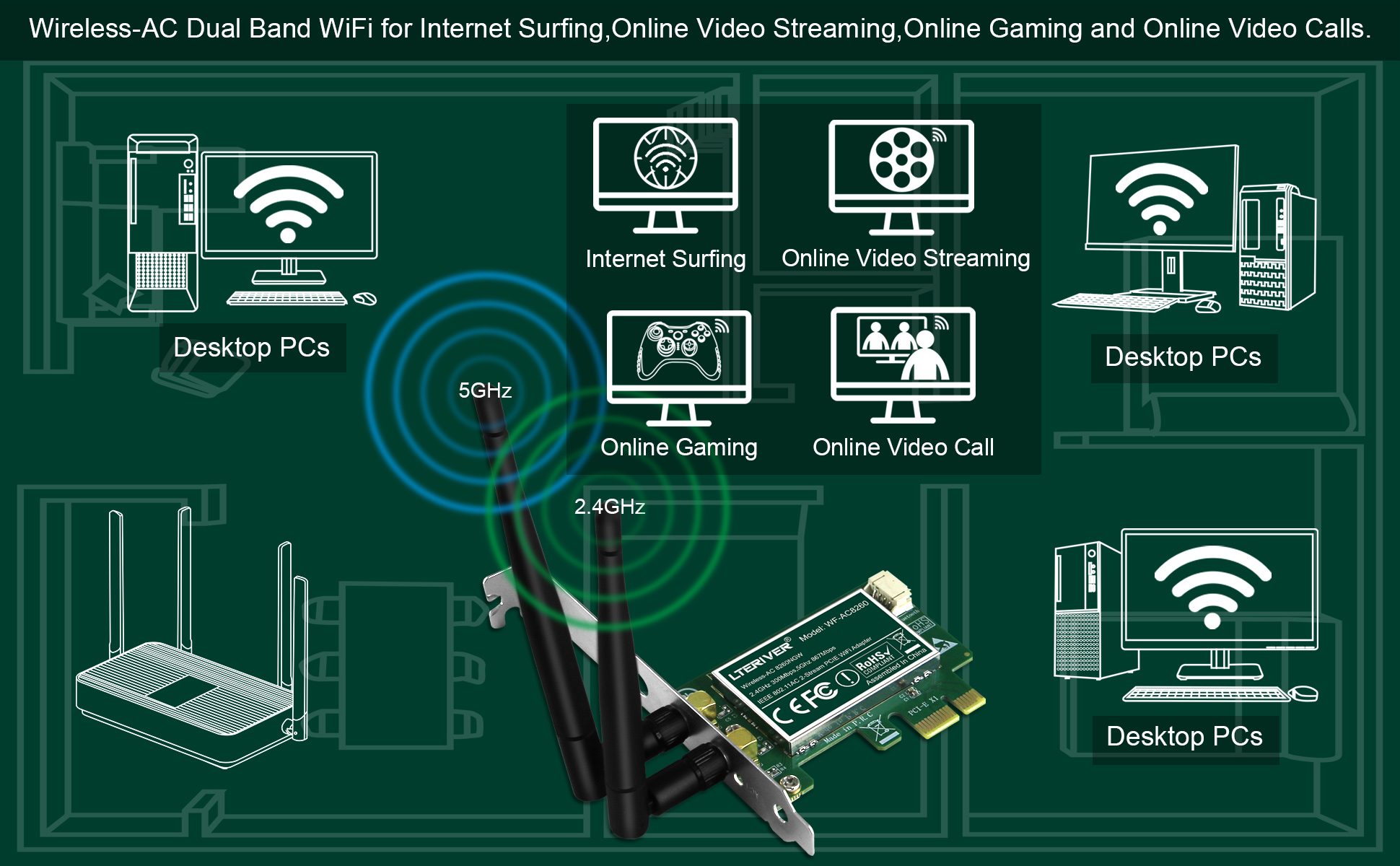

This WF-AC8260 is based on Intel’s Wireless-AC 8260 Wi-Fi module. It supports the IEEE 802.11AC Wi-Fi network standard, will provide 2X2 MU-MIMO 1200Mbps total Wi-Fi connection speed on desktop PCs for online gaming and Pro HD video streaming. It is also built in Wi-Fi audio adapter for most of Wi-Fi audio devices such as Wi-Fi headphone, Wi-Fi speaker, Wi-Fi earphone and Wi-Fi Mice. It is the low-cost way to add desktop PCs add Wi-Fi network and Wi-Fi audio function on home and office desktop PCs.


Technical Specifications:

1. Model: WF-AC8260

2. Wi-Fi Module: Intel Wireless-AC 8260

3. Working Mode: Wi-Fi adapter and ireless AP

4. Wi-Fi Standard: IEEE 802.11AC Wi-Fi 5 with 2X2 MU-MIMO technology

5. Max Connection Speed: 2.4GHz 40MHz 300Mbps and 80MHz 5GHz 867Mbps

6. Hardware Interface: PCIE X1, will compatible with motherboard PCIE on PCIE X1, X2, X4, X8, X16 slot

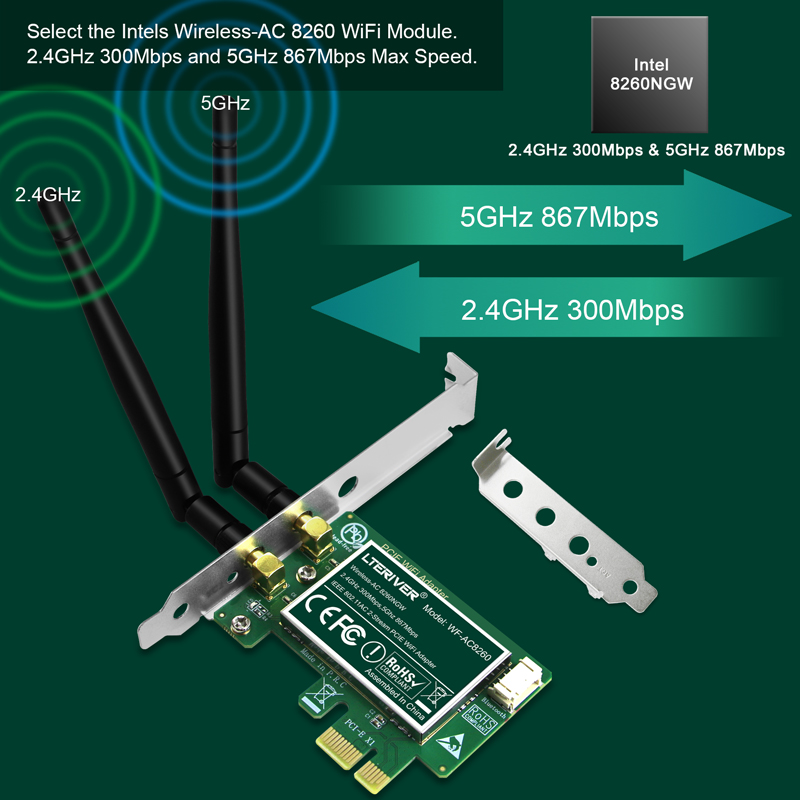

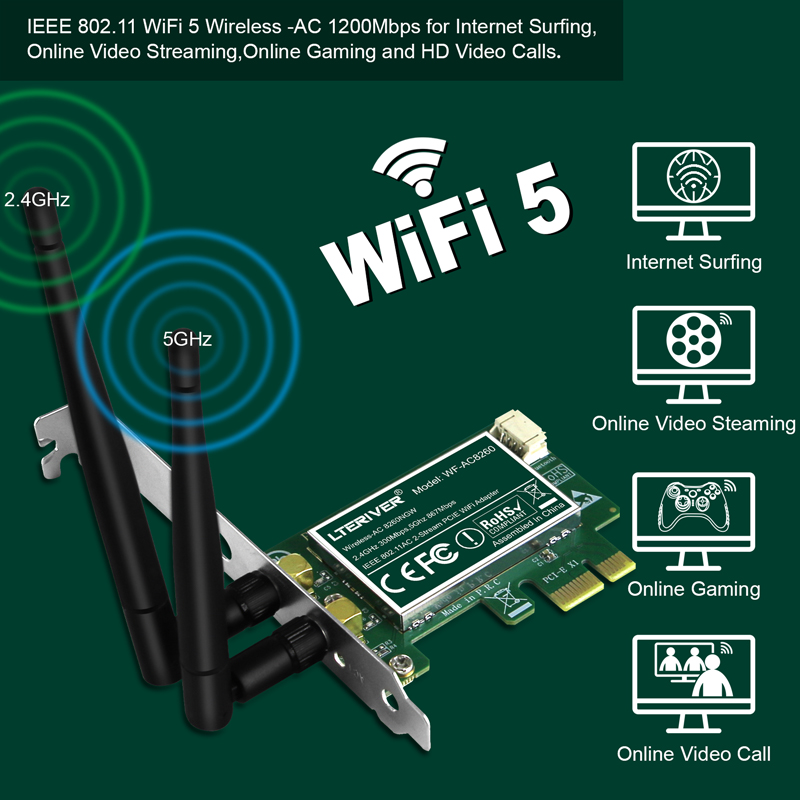

1. The WF-AC8260 1200Mbps PCIE Wi-Fi adapter is based on Intel Wireless-AC 8260 Wi-Fi module. It will provide 2.4GHz 300Mbps and 5GHz 867Mbps Wi-Fi speed on PCs for online gaming and Pro HD video streaming.

2. System Requirements: Need to install Wi-Fi network driver and Wi-Fi audio driver on Windows 7 32/64bit, Windows 8.x, Windows 10 64bit and Windows 11 64bit. Need compile driver on Linux kernel 4.1+. NOTE: Supports Intel’s site driver for “Wireless-AC 8260”.

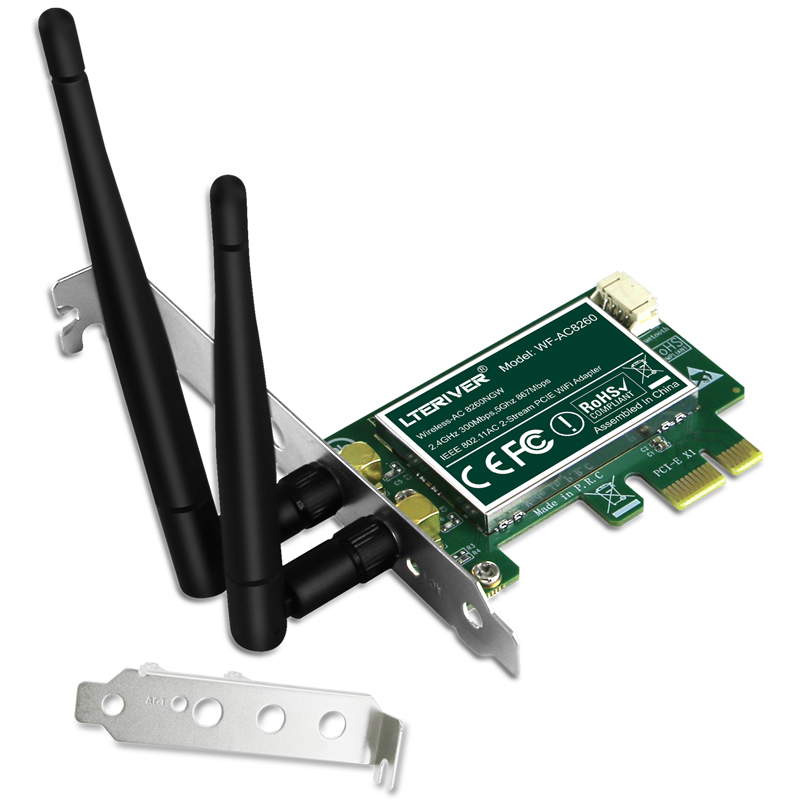

3. The full height bracket mounted on the Wi-Fi card for standard size PCs and the low-profile bracket in the package for slim size PCs. User must change to low profile bracket once using on slim PCs.

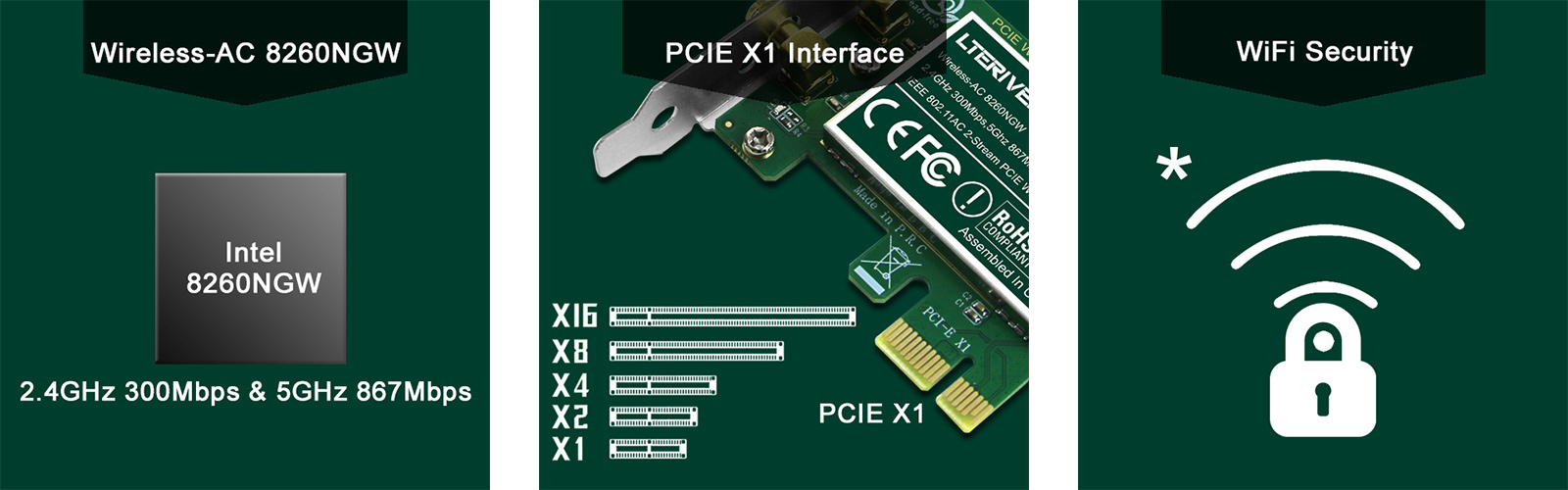

1. Select the Intel's Wireless-AC 8260NGW Wi-Fi module, will provide stable and fast wireless network connection for home and office desktop PCs.

2. PCIE X1 interface design will works on PCIE X1, X2, X4, X8, X16 slot. Users must check if mother board have empty PCIE slot before purchase.

3. It supports the latest Wi-Fi encryption protocol such as WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

Product Description:

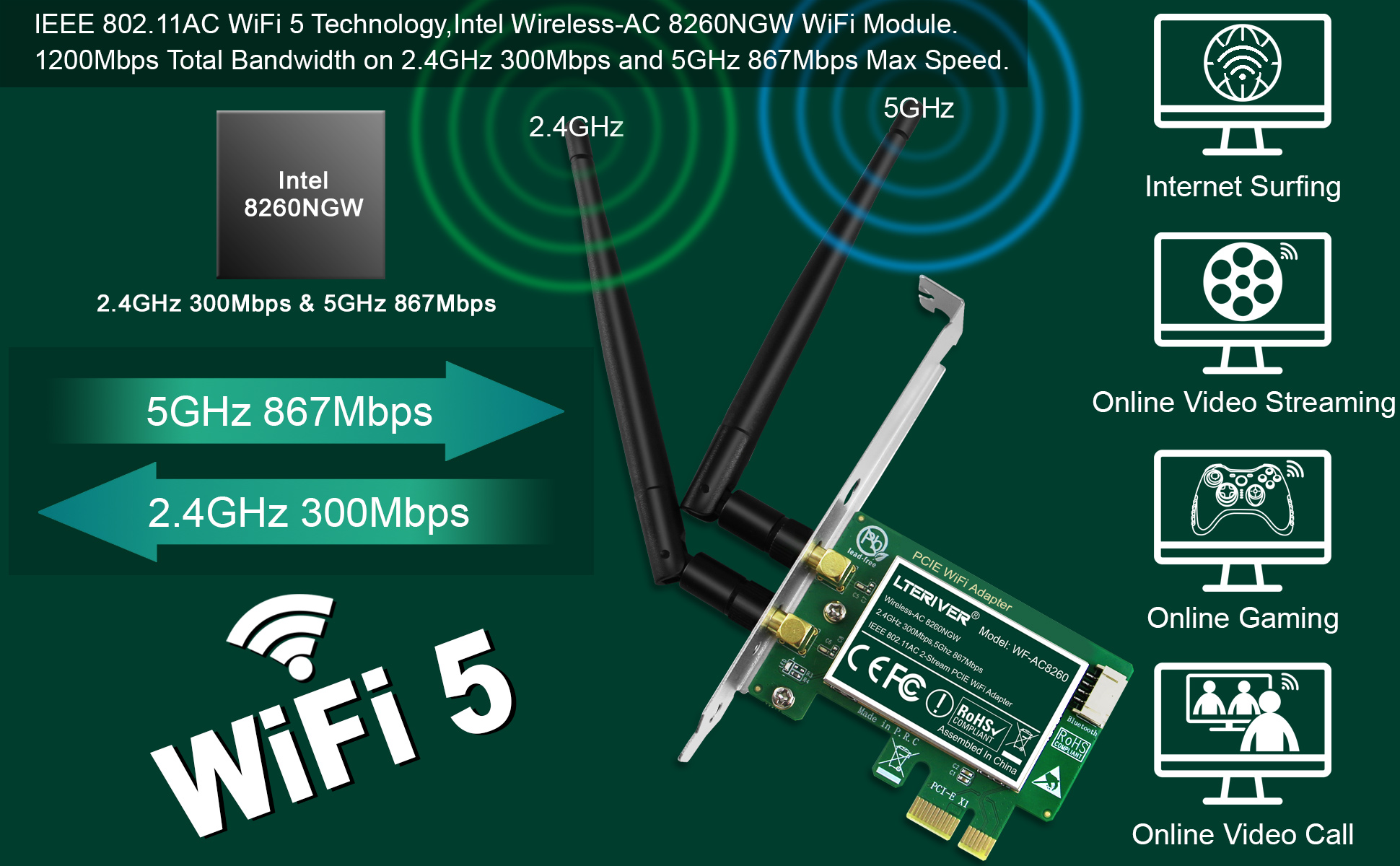

This WF-AC8260 is based on Intel’s Wireless-AC 8260 Wi-Fi module. It supports the IEEE 802.11AC Wi-Fi network standard, will provide 2X2 MU-MIMO 1200Mbps total Wi-Fi connection speed on desktop PCs for online gaming and Pro HD video streaming. It is also built in Wi-Fi audio adapter for most of Wi-Fi audio devices such as Wi-Fi headphone, Wi-Fi speaker, Wi-Fi earphone and Wi-Fi Mice. It is the low-cost way to add desktop PCs add Wi-Fi network and Wi-Fi audio function on home and office desktop PCs.

Technical Specifications:

1. Model: WF-AC8260

2. Wi-Fi Module: Intel Wireless-AC 8260

3. Working Mode: Wi-Fi adapter and ireless AP

4. Wi-Fi Standard: IEEE 802.11AC Wi-Fi 5 with 2X2 MU-MIMO technology

5. Max Connection Speed: 2.4GHz 40MHz 300Mbps and 80MHz 5GHz 867Mbps

6. Hardware Interface: PCIE X1, will compatible with motherboard PCIE on PCIE X1, X2, X4, X8,

X16 slot

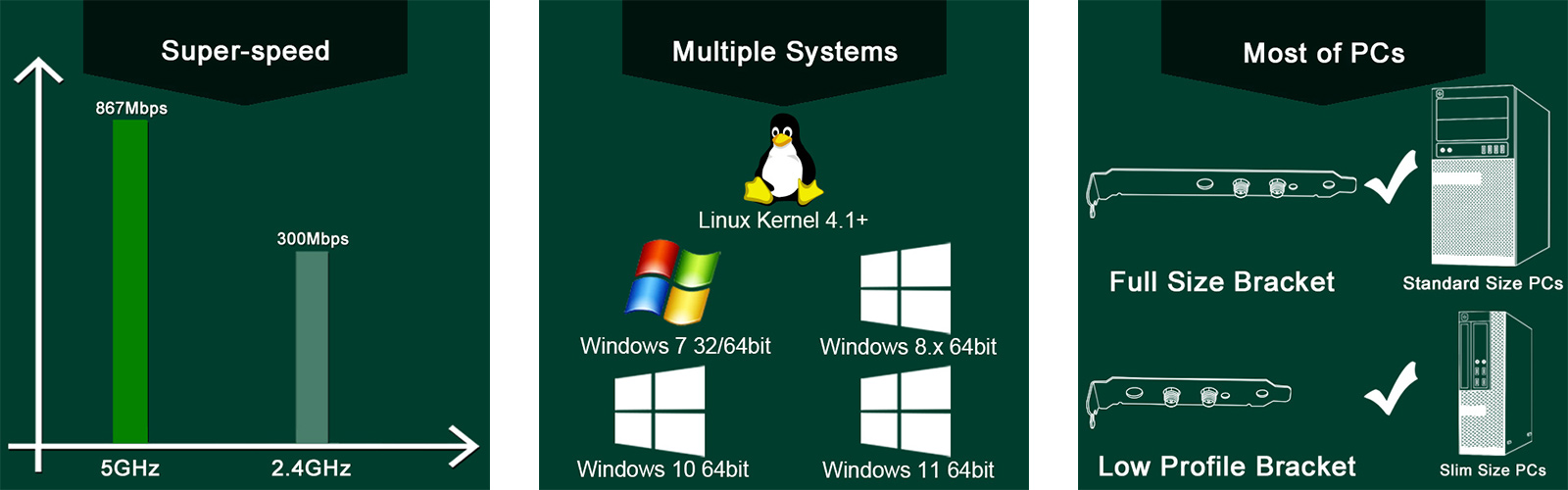

7. Compatible PCs Type: Full height bracket mounted on the Wi-Fi card for standard size PCs, the low-profile bracket in the package for slim PCs.

System Requirements:

1. Windows 7 32/64bit and Windows 8.x,10, 11 64bit.

2. Linux kernel 4.1+.

Package List: 1X WF-AC8260, 1X User Manual, 1X Mini-CD, 1X Low Profile Bracket, 1X Mount-screw
