LTERIVER PCIE 3.0 X1 to 4-Ports Serial ATA/SATA 3.0 Host Controller, Plug and Play on Windows OS, MAC OS and Linux Kernel Systems-4X 6Gbps Max SATA 3.0 None Raid Ports-Support AHCI Boot Up (PCE-G3S4)

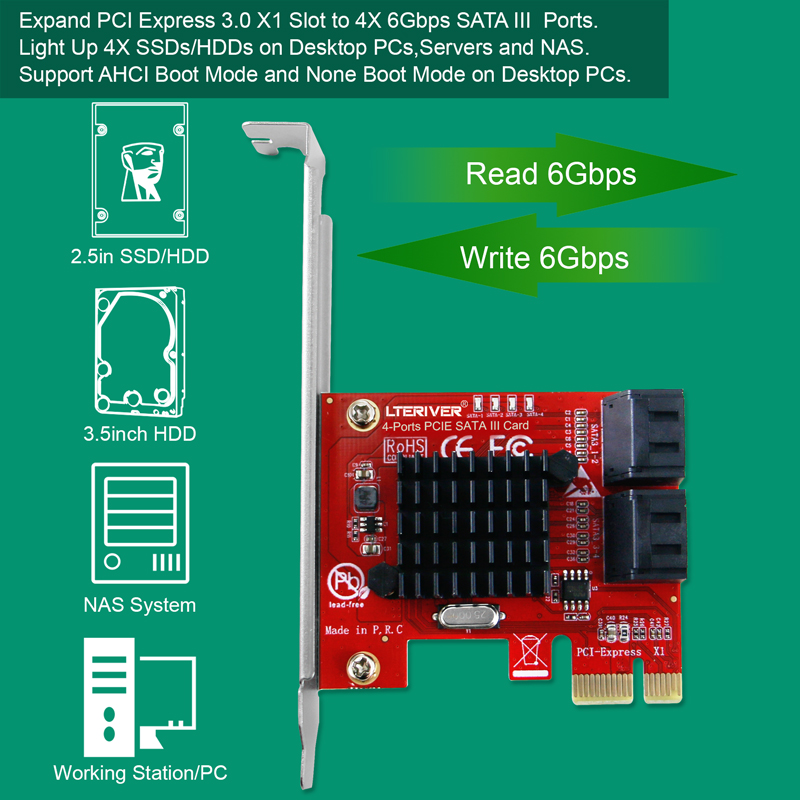

LTERIVER PCE-G3S4 is a PCI Express Gen 3 to SATA III (Serial ATA) 6Gbps controller. It will covert PCIE 3.0 X1 signal to 4-Ports SATA III on desktop PCs, Working Stations, MAC Pros and NAS. The PCIE 3.0 X1 interface will provide 8Gbps total bandwidth for 4X SATA III ports. Allow users add 4X max SATA HDD/SSD on their system for AHCI Boot or Storage Expansions. This PCIE SATA III card will support Plug and Play on Windows OS, Linux kernels, and MAC OS systems, now no need to install driver anymore for PCIE SATA III expansion cards.

WARNING:

1. This PCE-G3S4 PCIE SATA card no need to install driver, if PCs or Servers cannot find the added-on HDD/SSD and this device, then double check if the mother board PCIE slot is active and open. Some brand mother board may have defined PCIE function when it produced. User better call mother board manufacture locate the problem.

2. PCE-G3S4 was set on AHCI boot up mode. If users using the classical IDE mode, user’s PC will report BSD error. If users do not know which mode is running on PCs, follow steps as below: Windows Device Manage-IDE ATA/ATAPI Controllers- Will see “XXXX SATA AHCI controllers” or “XXX IDE controllers”.

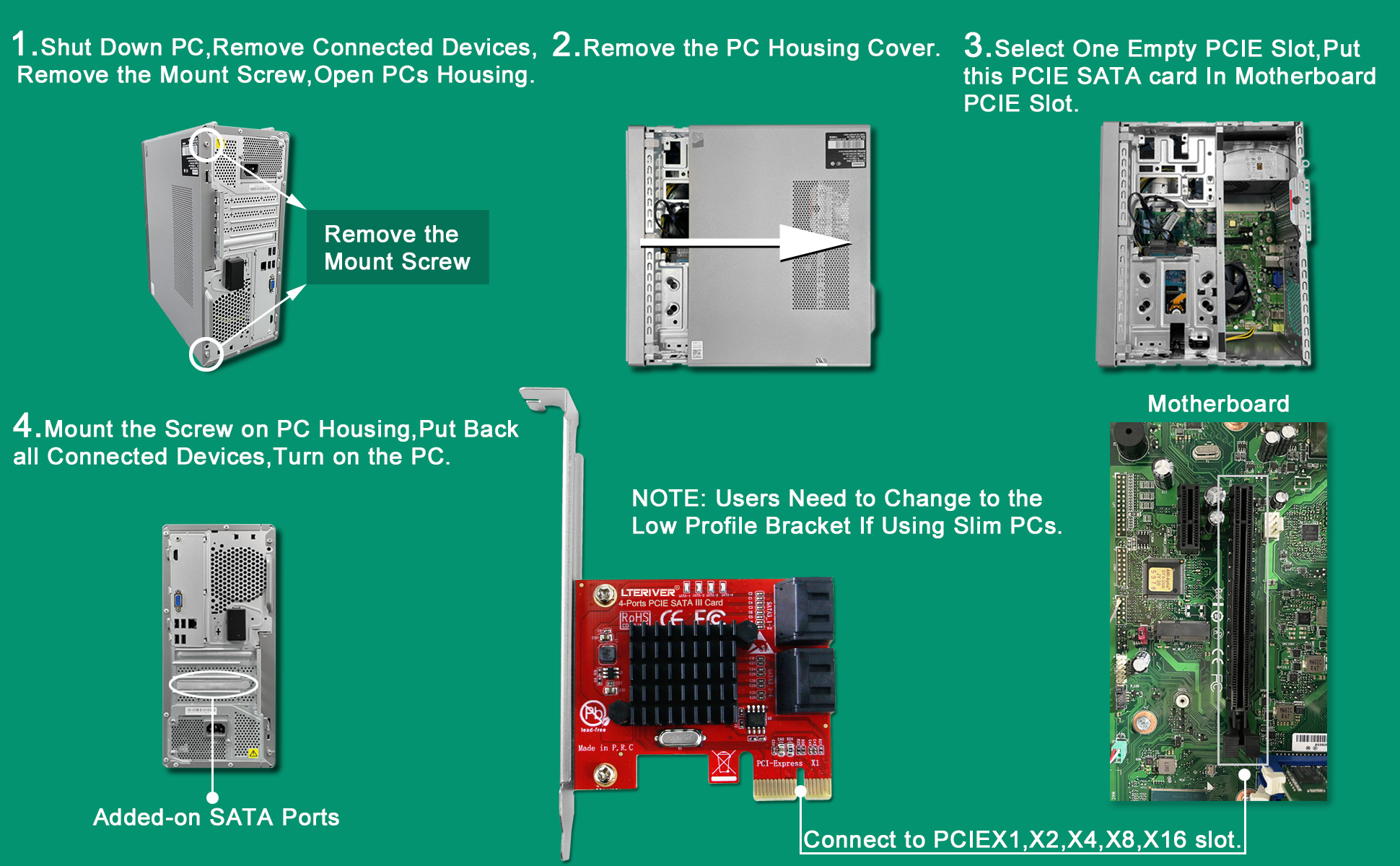

3. PCE-G3S4 is designed on PCIE X1 interface, will works on PCIE X1, X2, X4, X8, X16 slot. Normal users better check if it has empty PCIE slot before purchase.

4. If user add the new or recovered HDD/SSD on the system, users must add this disk on system by Windows reminder in Windows Device Manager-Storage-Disk Management.

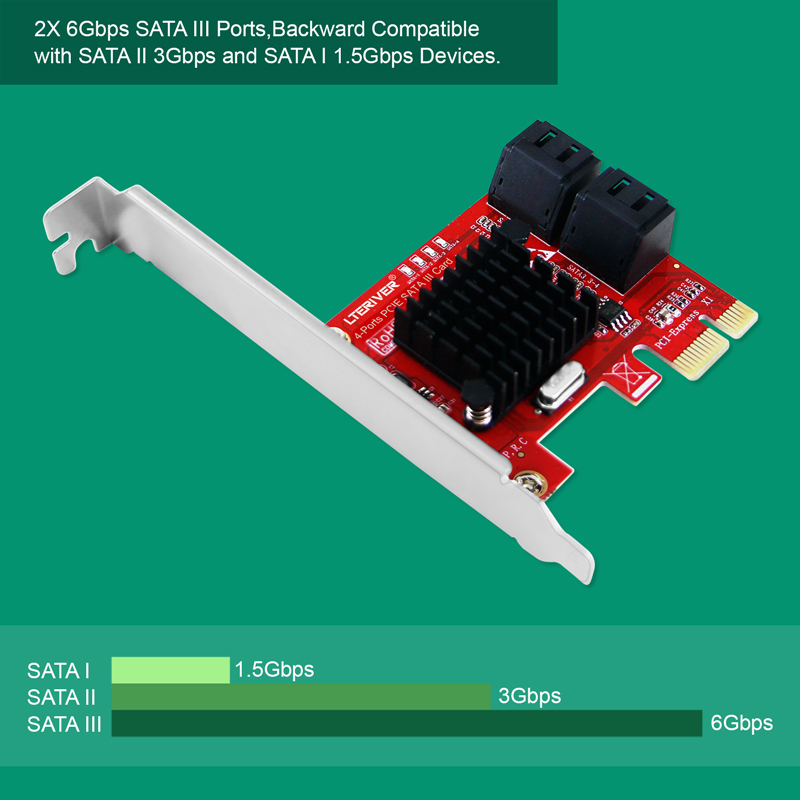

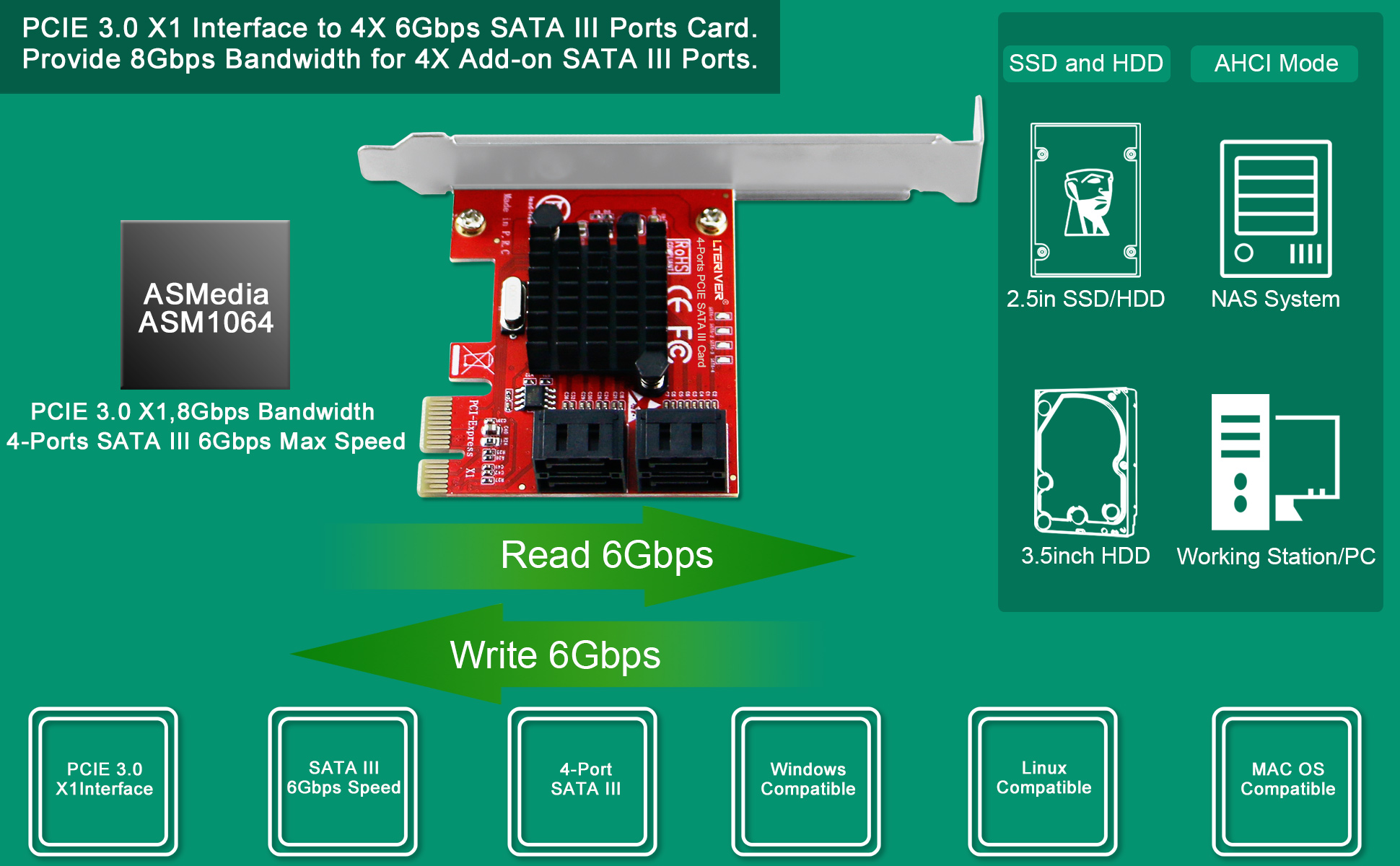

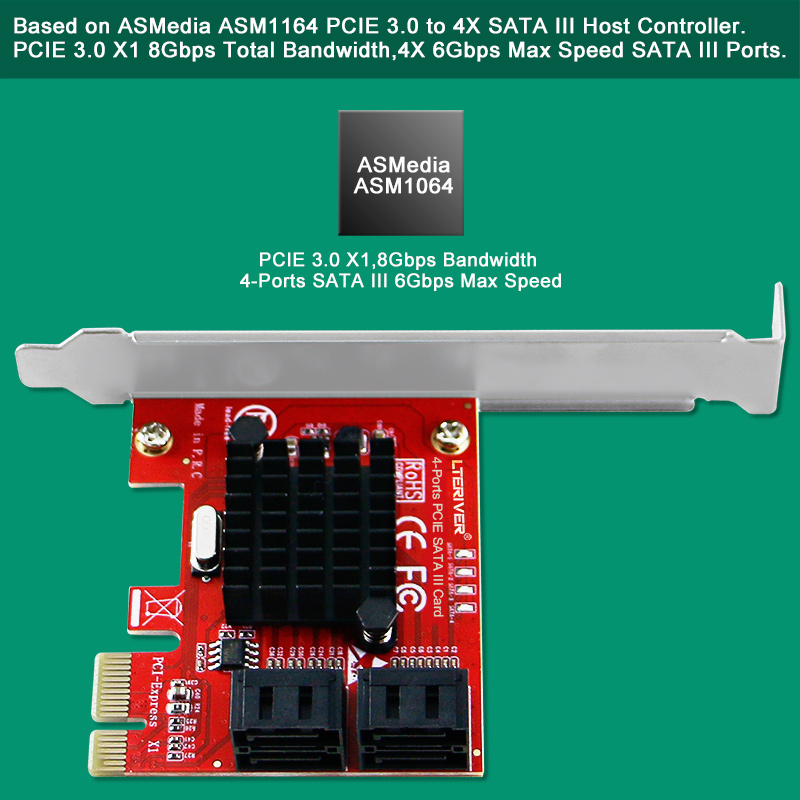

1. Based on ASMedia ASM1064PCIE 3.0 X1 interface Serial ATA advantage HCI controller. The 4X SATA III 6Gbps max ports will share these 8Gbps bandwidth. Complies with Serial ATA Revision 3.2. Support SATA III speed 6Gbps, SATA II speed 3Gbps, SATA 1 speed 1. 5Gbps.

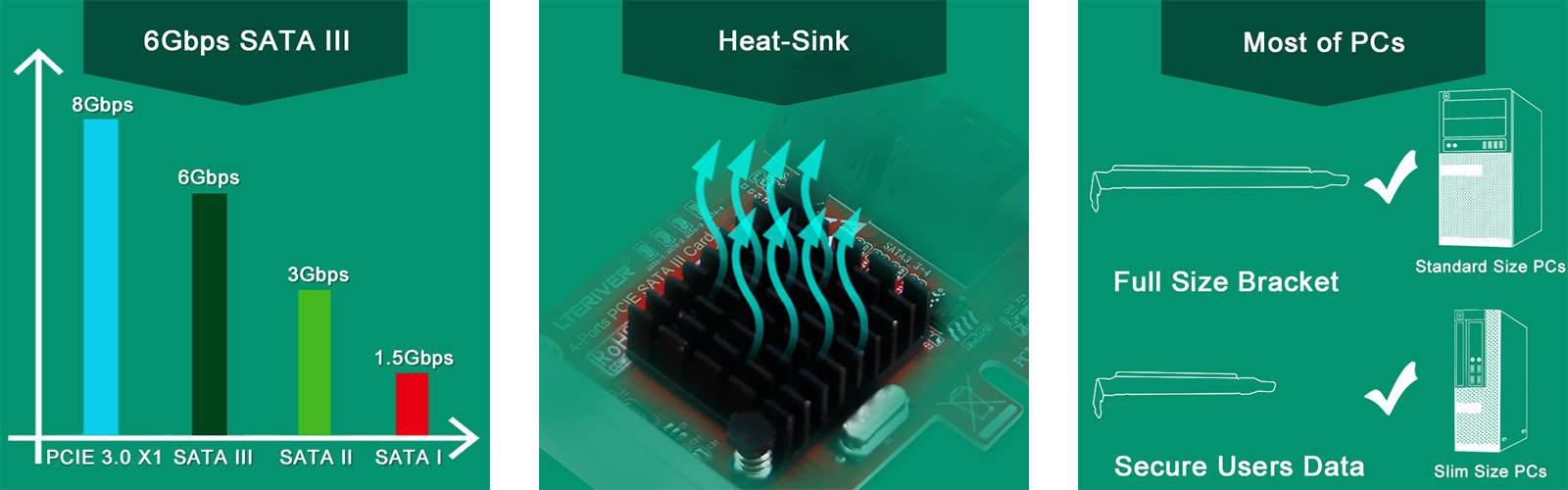

2. The Added on Heat-Sink will protect the Major Chip ASM1166 from Overheat, Ensure Full SATA III Connection Speed 6Gbps.

3. The Full Size Bracket Mounted on this PCIE SATA Card, will Work on Standard Size PCs. The Low Profile Bracket in the Package will Work on Slim Size PCs.

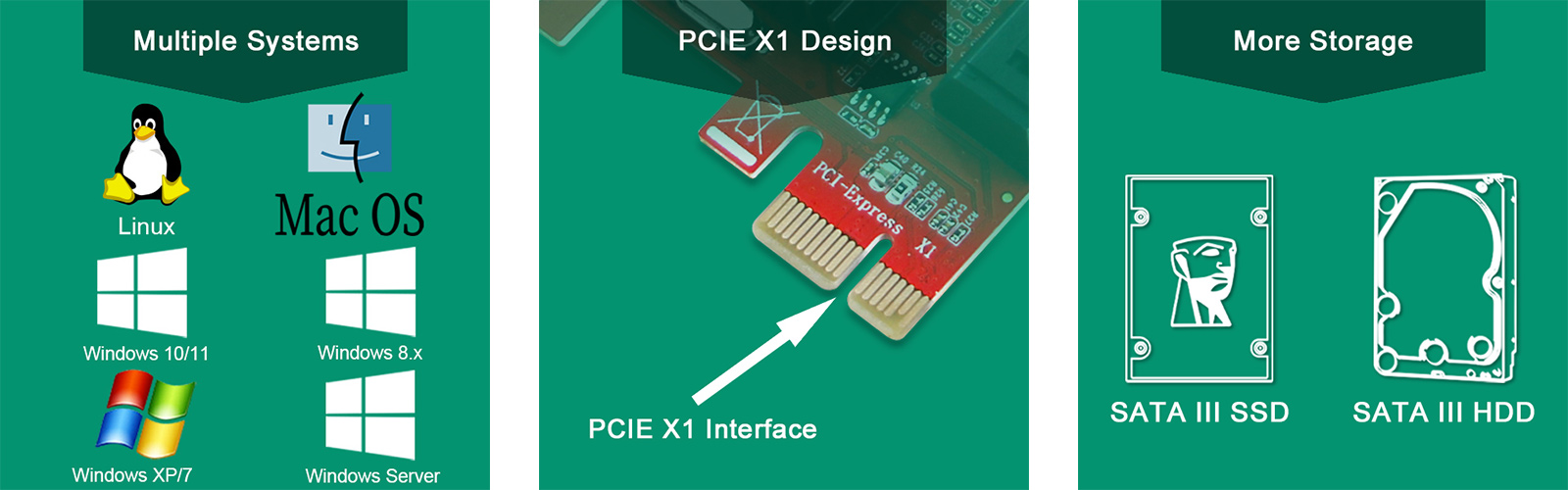

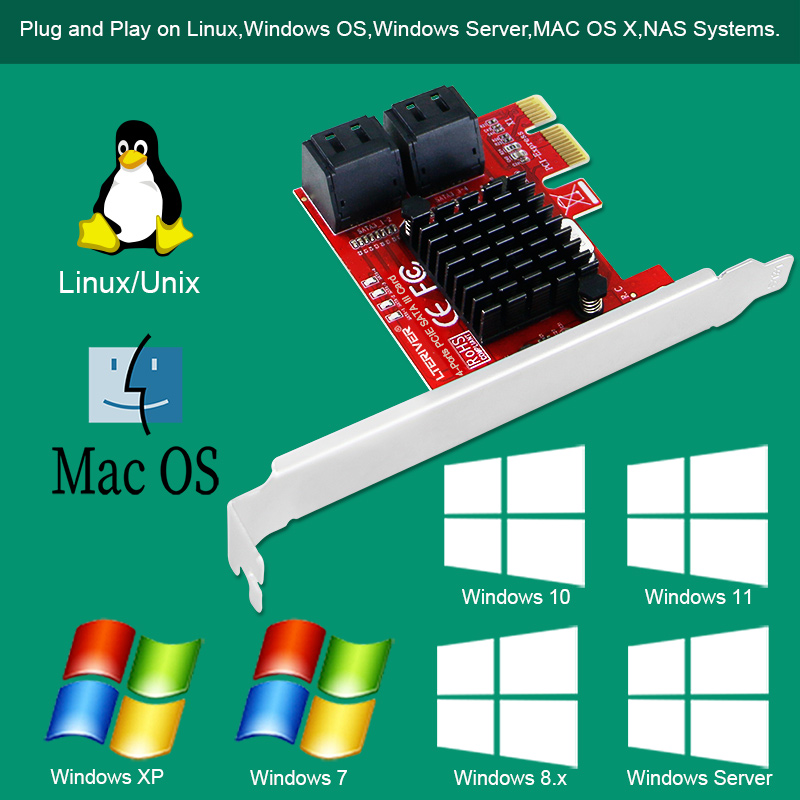

1. Support Plug and Play on Windows OS, MAC OS, and Linux system. Seamless works on AMD, ARM, INTEL, and MAC hardware platform.

2. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. Users need to check if PCs or Servers have at least one PCIE slot on mother board before purchase.

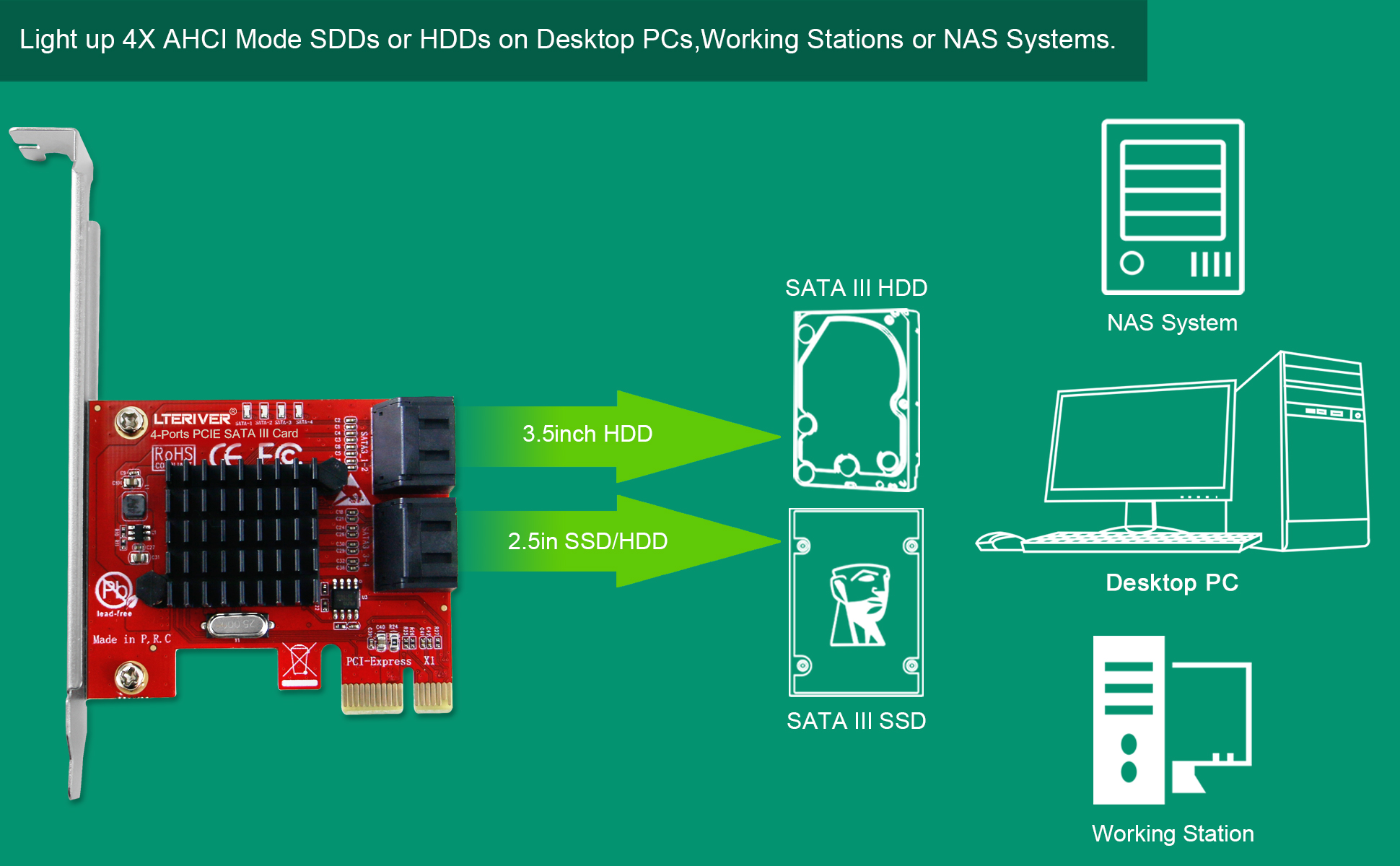

3. Seamless Connect to SATA III/II/I SSD and HDD. Light up 6X Max SSD or HDD in System.

Product Description:

LTERIVER PCE-G3S4 is a PCI Express Gen 3 to SATA III (Serial ATA) 6Gbps controller. It will covert PCIE 3.0 X1 signal to 4-Ports SATA III on desktop PCs, Working Stations, MAC Pros and NAS. The PCIE 3.0 X1 interface will provide 8Gbps total bandwidth for 4X SATA III ports. Allow users add 4X max SATA HDD/SSD on their system for AHCI Boot or Storage Expansions. This PCIE SATA III card will support Plug and Play on Windows OS, Linux kernels, and MAC OS systems, now no need to install driver anymore for PCIE SATA III expansion cards.

WARNING:

1. This PCE-G3S4 PCIE SATA card no need to install driver, if PCs or Servers cannot find the added-on HDD/SSD and this device, then double check if the mother board PCIE slot is active and open. Some brand mother board may have defined PCIE function when it produced. User better call mother board manufacture locate the problem.

2. PCE-G3S4 was set on AHCI boot up mode. If users using the classical IDE mode, user’s PC will report BSD error. If users do not know which mode is running on PCs, follow steps as below: Windows Device Manage-IDE ATA/ATAPI Controllers- Will see “XXXX SATA AHCI controllers” or “XXX IDE controllers”.

3. PCE-G3S4 is designed on PCIE X1 interface, will works on PCIE X1, X2, X4, X8, X16 slot. Normal users better check if it has empty PCIE slot before purchase.

4. If user add the new or recovered HDD/SSD on the system, users must add this disk on system by Windows reminder in Windows Device Manager-Storage-Disk Management.

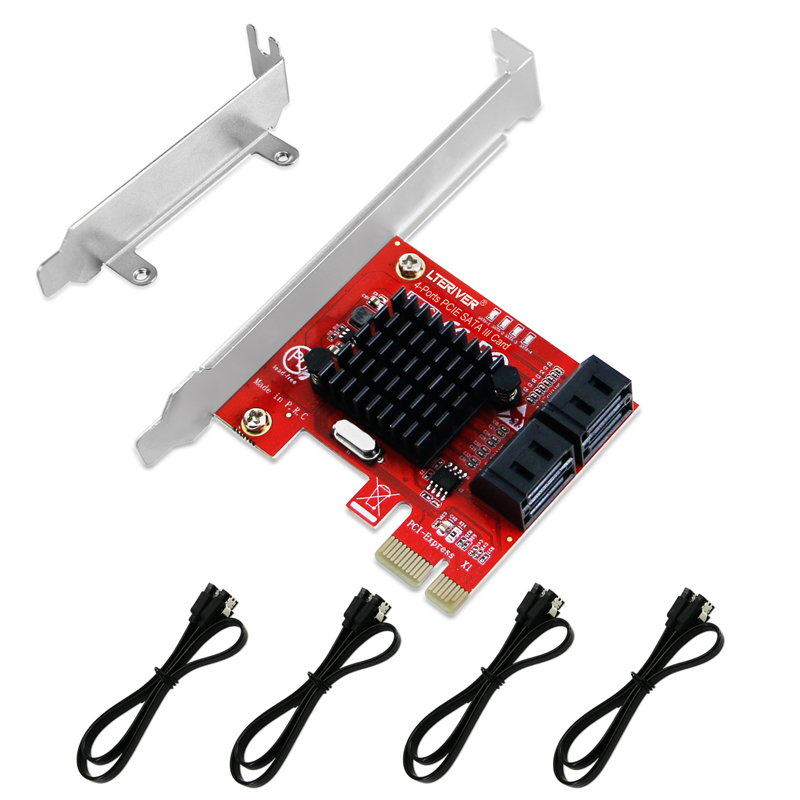

Package: 1X PCE-G3S4, 1X User Manual, 1X Low Profile Bracket, 1X Mount Screw, 4X SATA Cable
