LTERIVER PCI Express to 2-Ports Gigabit Ethernet Adapter for Windows Server, 7, 8.0, 8.1, 10, 11 (32/64) and Linux, Dual Ports Gigabit PCIE Network Interface Card, Realtek RTL811GN Chipset (PCE-NIC2)

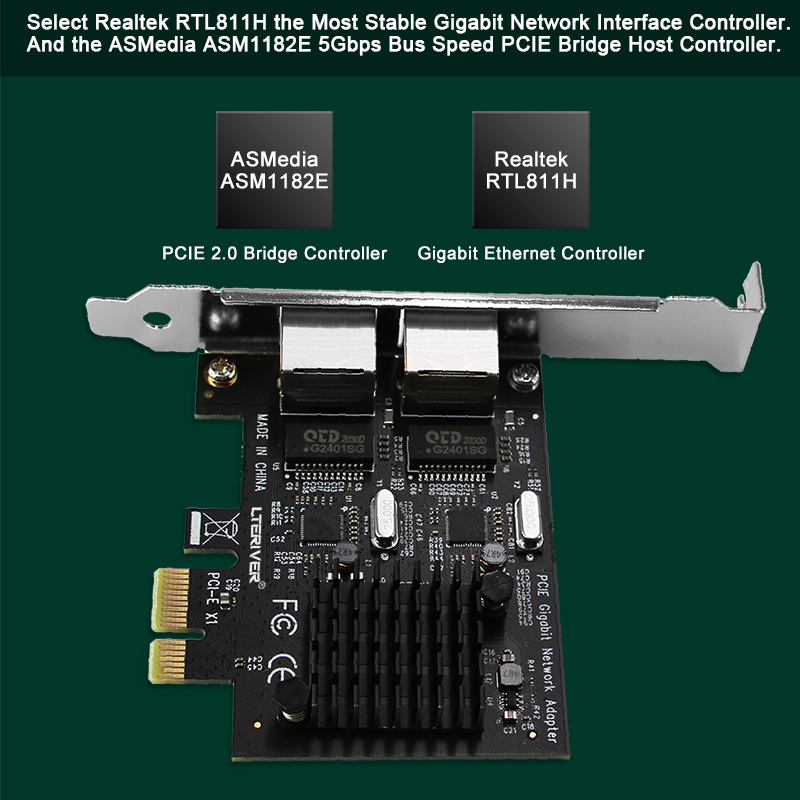

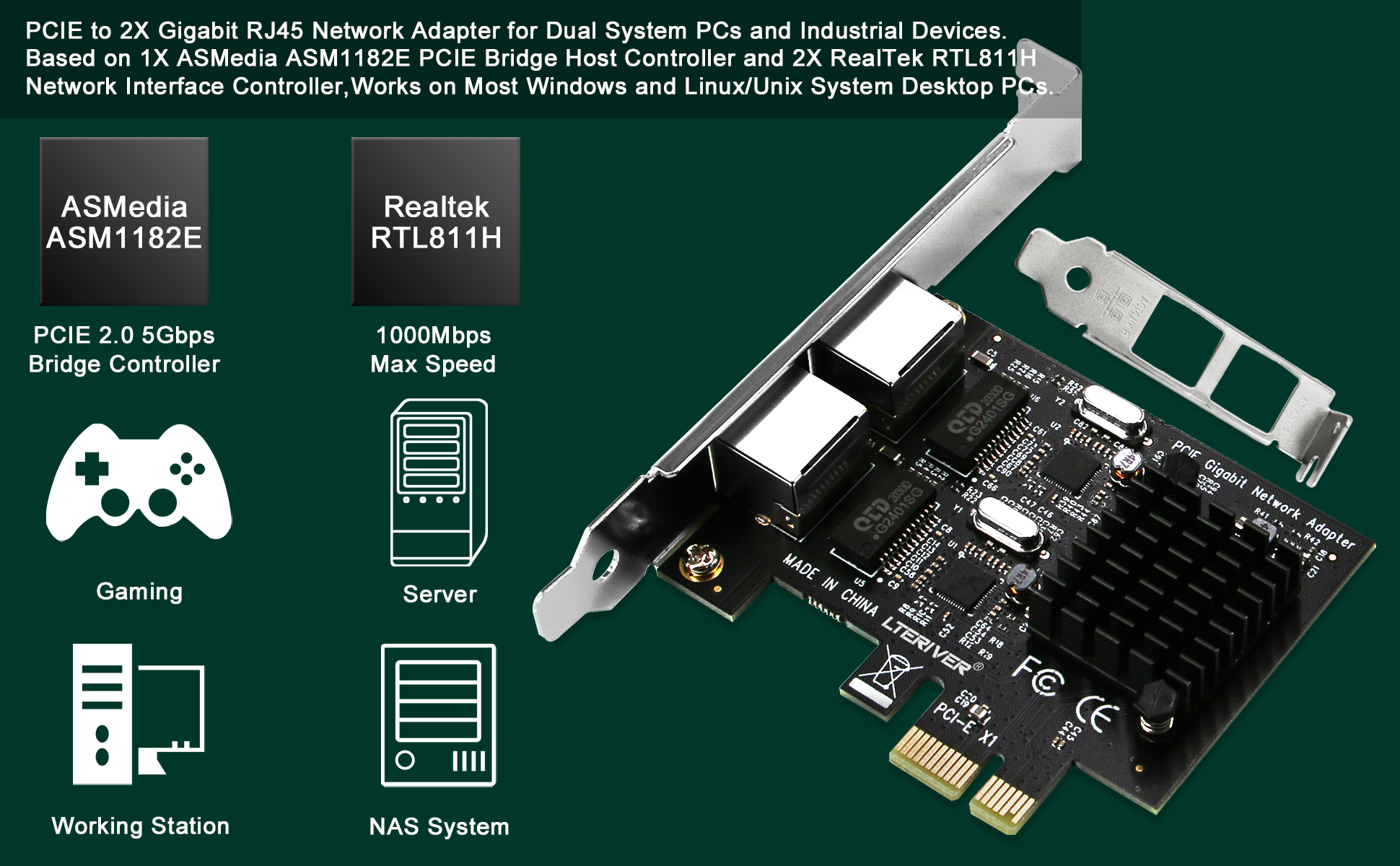

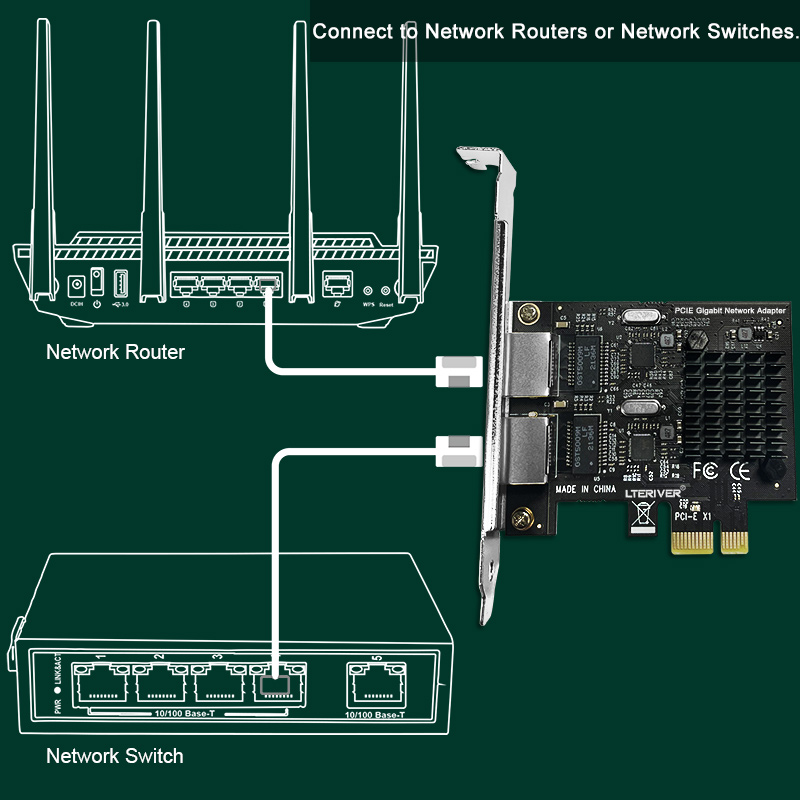

This PCE-NIC2 is a PCI Express to Dual Ports Gigabit NIC card. It will covert PCIE X1 signal to 2X gigabit ethernet signal. It will help users add gigabit network on PCs, Servers or NAS systems for IPV4 and IPV6 internet communication. It is based on Realtek RTL811H, the best compatible NIC card solution. Supports multiple main stream system plug and play such as Windows 11, 10 32/64 bit and Server 2019, 2022. We also packed the low profile bracket for slim PC users or PI system users. It is a low cost and practical way to add ethernet connection on PCs and Dual System Industrial Device.

Hardware Specification:

Integrated 10/100/1000M transceiver, Supports Giga Lite (500M) mode Auto-Negotiation with Next Page capability

Supports PCI Express 1.1 Supports pair swap/polarity/skew correction Crossover Detection & Auto-Correction

Supports 1-Lane 2.5Gbps PCI Express Bus Supports hardware Error Correction Code function

Supports hardware Cyclic Redundancy Check function Transmit/Receive on-chip buffer support

Supports PCI Message Signaled Interrupted MSI-X Supports 25MHz or 48MHz Oscillator

Supports power down/link down power saving Controllable LED Blinking Frequency and Duty Cycle

Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts XTAL-Less Wake-On-LAN Supports Latency Tolerance Reporting

Network Specification:

1. Fully compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

2. Supports IEEE 802.1P Layer 2 Priority Encoding Supports IEEE 802.1Q VLAN tagging

3. Supports IEEE 802.3az-2010 (EEE) Supports Full Duplex flow control (IEEE 802.3x)

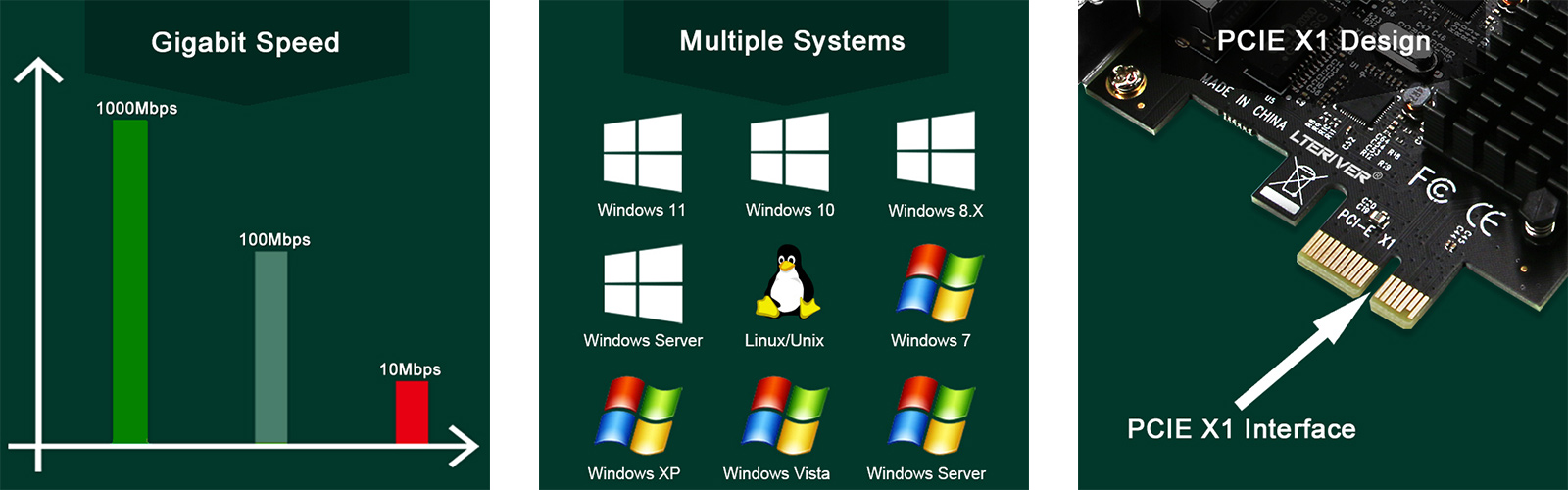

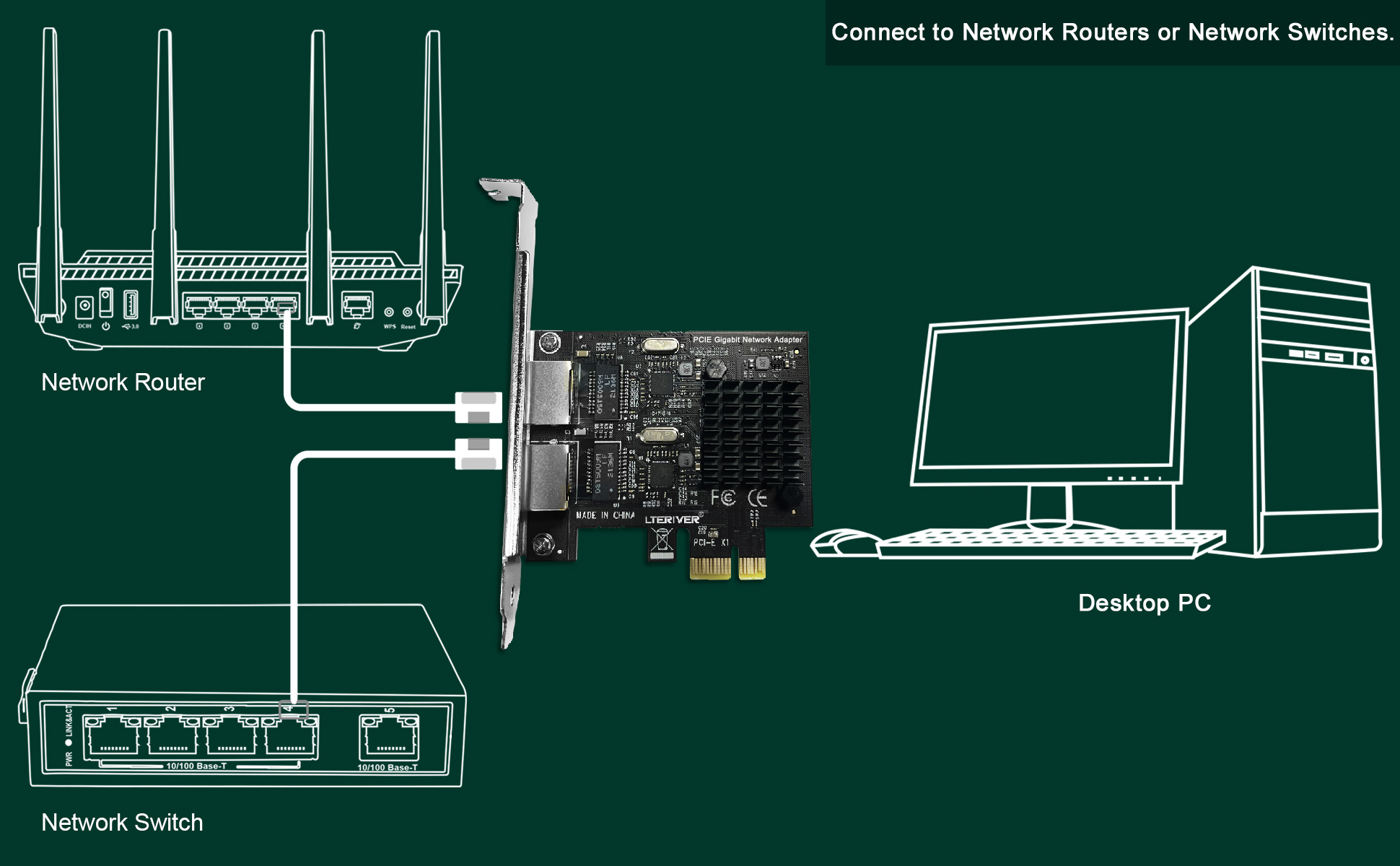

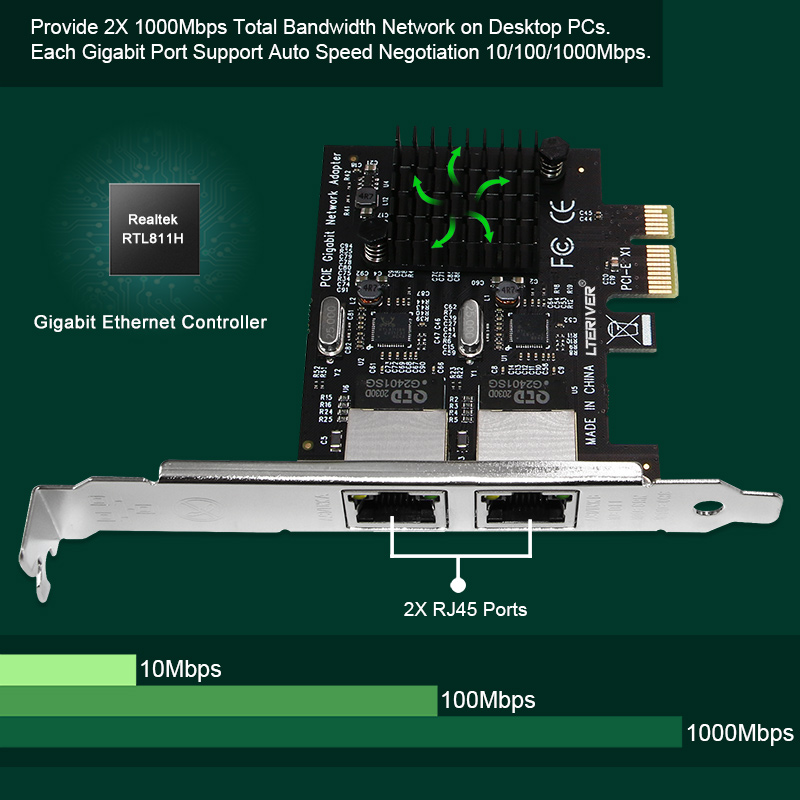

1. Add 2-Ports gigabit NIC lane card on desktop PCs, NAS or Working Stations, enjoy 2X 1Gbps super speed network connection. Auto detect and switch each ethernet speed to 1000/100/10Mbps.

2. Compatible with Windows 11, 10, 8.1, 8, 7, Vista, XP (32/64) systems and Windows server 2003, 2003R2, 2008, 2008R2, 2012, 2012R2, 2016, 2019, 2022 (32/64) systems. Support most of Linux system, NOT works on MAC OS.

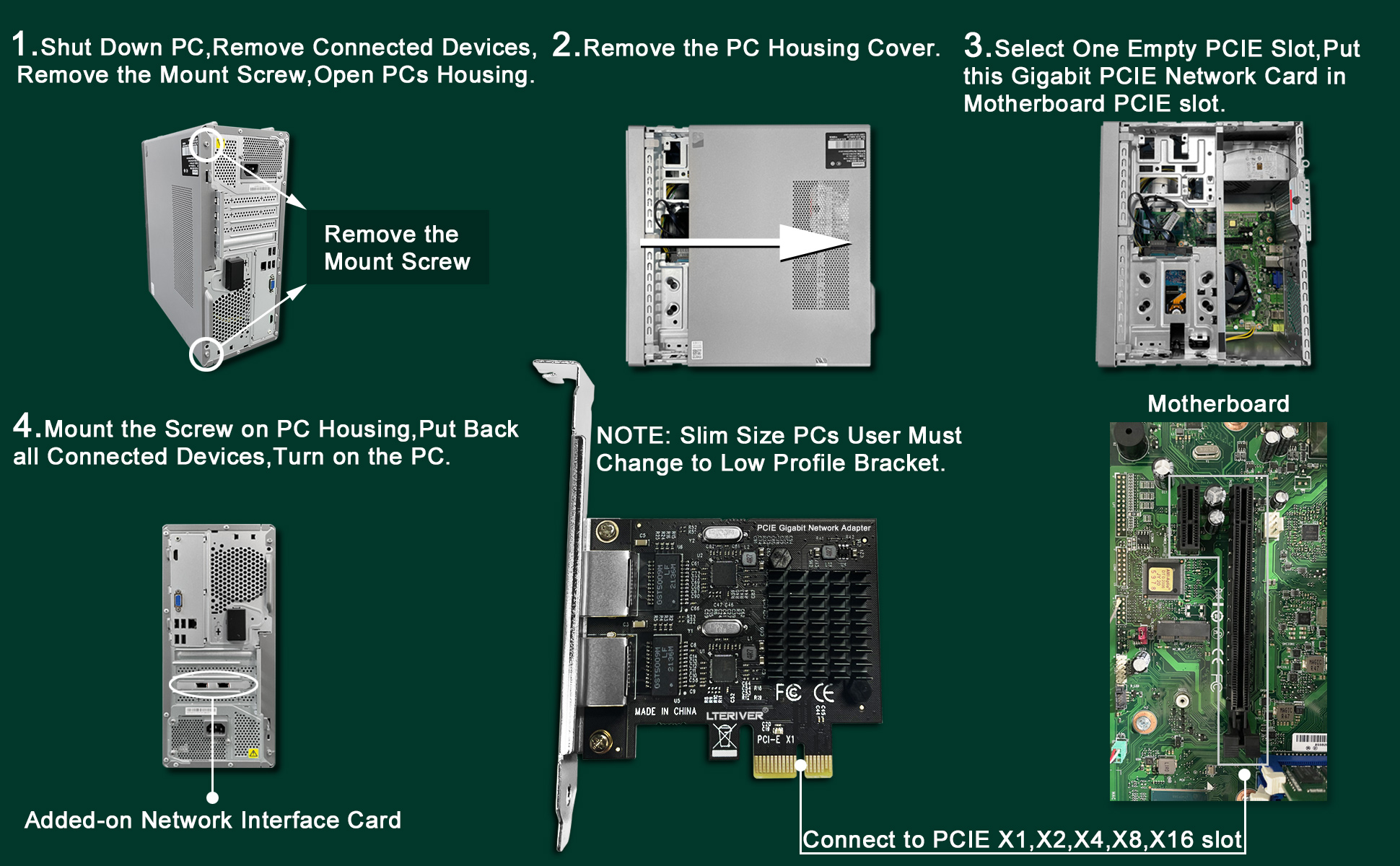

3. Based on PCI Express X1 interface, will works on PCI Express bus X1, X2, X4, X8, X16 slot.

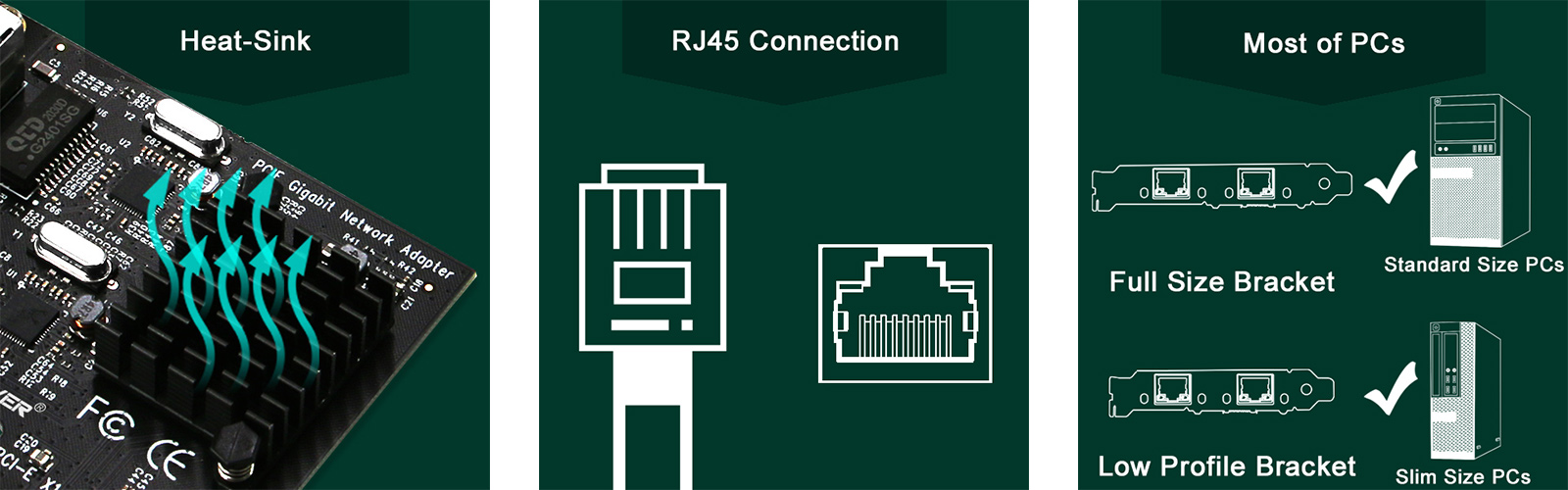

1. The Added the Heat-Sink on the Network Card to Protect Network Card from Overheat, Ensure Stable and Full Speed Network Connection.

2. Supports the Latest IPV4/6 Network Connection on RJ45 Ports for Easy and Effective Connection.

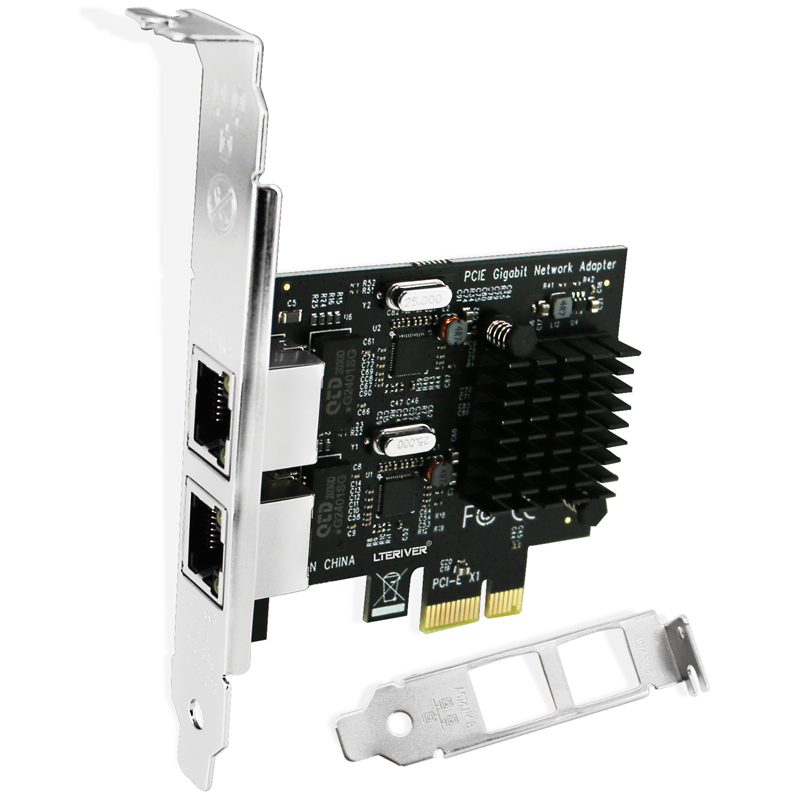

3. Full height bracket mounted on network card, Low profile bracket in the package, support slim size PCs and full height PCs.

Product Description:

This PCE-NIC2 is a PCI Express to Dual Ports Gigabit NIC card. It will covert PCIE X1 signal to 2X gigabit ethernet signal. It will help users add gigabit network on PCs, Servers or NAS systems for IPV4 and IPV6 internet communication. It is based on Realtek RTL811H, the best compatible NIC card solution. Supports multiple main stream system plug and play such as Windows 11, 10 32/64 bit and Server 2019, 2022. We also packed the low profile bracket for slim PC users or PI system users. It is a low cost and practical way to add ethernet connection on PCs and Dual System Industrial Device.

Microsoft Always on Always Connected

Supports link change wake up Wake-On-LAN and ‘Real Wow!’ Technology remote wake-up, support Supports 32-set 128-byte Wake-Up Frame pattern exact matching, Supports Microsoft Wake Packet Indication

Hardware Specification:

Integrated 10/100/1000M transceiver, Supports Giga Lite (500M) mode Auto-Negotiation with Next Page capability, Supports PCI Express 1.1 Supports pair swap/polarity/skew correction Crossover Detection & Auto-Correction, Supports 1-Lane 2.5Gbps PCI Express Bus Supports hardware Error Correction Code function, Supports hardware Cyclic Redundancy Check function Transmit/Receive on-chip buffer support, Supports PCI Message Signaled Interrupted MSI-X Supports 25MHz or 48MHz Oscillator, Supports power down/link down power saving Controllable LED Blinking Frequency and Duty Cycle, Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts XTAL-Less Wake-On-LAN Supports Latency Tolerance Reporting

Network Specification:

1. Fully compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

2. Supports IEEE 802.1P Layer 2 Priority Encoding Supports IEEE 802.1Q VLAN tagging

3. Supports IEEE 802.3az-2010 (EEE) Supports Full Duplex flow control (IEEE 802.3x)

Software Offload Technology

1. Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) Segmentation Task-offload (Large send v1 and Large send v2)

2. Supports jumbo frame to 9K bytes Supports quad core Receive-Side Scaling Supports Protocol Offload (ARP & NS)

Package List: 1X PCE-NIC2, 1X User Manual, 1X Low Profile Bracket, 1X Mount Screw
